- Standalone battery that pairs with your inverter. K-MOVE is a battery-only solution, giving you the freedom to use your existing or preferred hybrid, grid-tie or off-grid inverter.
- Large capacity per unit. Choose 16kWh, 18KWh of stored energy on a 51.2V low-voltage platform (working range 43.2–57.6V).
- Movable, floor-standing design. The unit stands on the floor and can be moved on its wheeled base, so you can relocate storage as your home layout changes.
- Long service life. Grade A LFP cells are rated for at least 6,000 cycles at 25°C and 80% DOD, with 90% usable depth of discharge.
- Built-in BMS protection. The integrated battery management system supports safe operation, cell balancing and over-charge, over-discharge, over-current and temperature protection.
- Expandable to 15 units in parallel. Scale your battery bank from a single unit up to 15 units in parallel as your energy needs grow.
- Flexible monitoring. CAN, RS485, RS232, Wi-Fi and Bluetooth interfaces make monitoring and system integration straightforward.
- Home-appliance styling. The compact, space-saving enclosure fits comfortably in garages, utility rooms and other indoor spaces.
- Home solar storage. Store surplus solar energy for evening and peak-hour use in homes with an existing solar inverter.
- Backup with a hybrid inverter. Add stored capacity to a hybrid or off-grid inverter for backup during grid outages.
- Expanding an existing system. Start with one K-MOVE unit and add up to 15 in parallel to grow your battery bank without replacing the inverter.
- High-consumption households. The 16–32.25kWh model provides a large-capacity option for heavier daily electricity use.

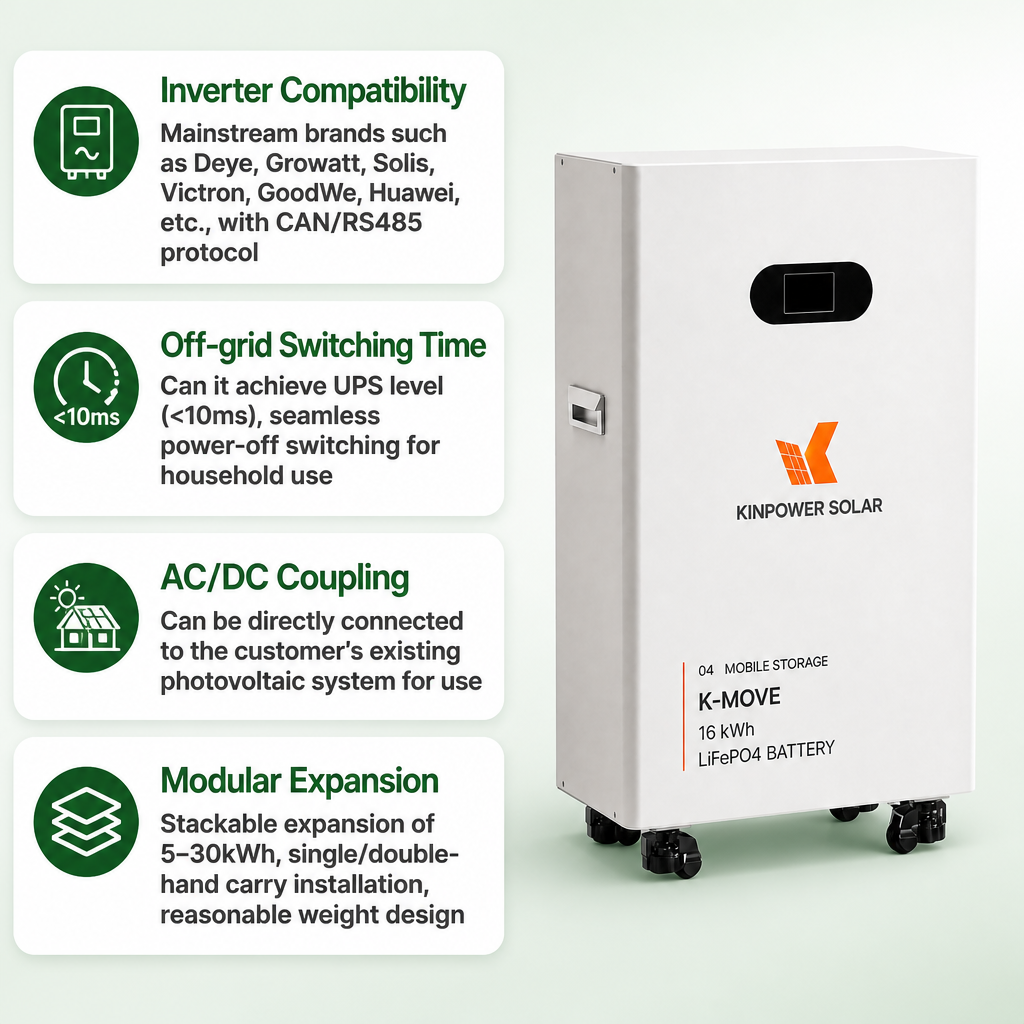

Mobile Battery Storage | K-MOVE Floor Standing LiFePO4 Home Battery
The KINPOWER K-MOVE is a mobile battery storage system built with all-new Grade A lithium iron phosphate (LiFePO4) cells. Unlike an all-in-one unit, it is a standalone floor-standing battery that pairs with your own inverter, so you can choose or upgrade the inverter separately. Available in three capacities from 16kWh to 32.25kWh (models Kinpower-BU006, Kinpower BU009), it supports up to 15 units in parallel, is rated for 6,000 cycles, and rolls on wheels so it can be positioned wherever you need it.
Why Choose the KINPOWER K-MOVE Mobile Battery Storage
Common Applications
Models and Specifications
| Model | SMP-BU006 | SMP-BU009 |
|---|---|---|
| Standard Voltage | 51.2VDC | 51.2VDC |
| Voltage Range | 43.2–57.6VDC | 43.2–57.6VDC |
| Nominal Capacity | 314Ah | 630Ah |
| Rated Energy | 16.07kWh | 32.256kWh |
| Communication | CAN / RS485 / RS232 / Wi-Fi / Bluetooth | |
| Cell Self-Discharge | <5% / Month | <5% / Month |
| Modules Connection | 1–15 in Parallel | |
| DOD | 90% | 90% |
| Cycle Life | ≥6000 @25℃, 80% DOD | |
| Max Charge & Discharge Current | 200A | 200A |
| IP Rating | IP20 | IP20 |
| Installation | Floor Standing | Floor Standing |
| Working / Storage Temp | 0–55℃ / −20–55℃ | |
| Humidity | ≤80% | ≤80% |
| Product Dimension (mm) | 850×550×250 | 1106×750×280 |
| Package Dimension (mm) | 1000×630×470 | 1290×850×500 |
| Net Weight | 130kg | 245kg |
| 20GP / 40HQ Loading | 110 / 220 PCS | 40 / 85 PCS |
All models share the same 51.2V low-voltage platform, 90% DOD, IP20 protection, a cell self-discharge below 5% per month, and a working temperature range of 0–55°C.
How a Standalone Battery Builds a Solar Storage System
K-MOVE is a battery-only product: connect it to a compatible inverter (hybrid, grid-tie or off-grid) to complete a solar energy storage system. During the day, solar panels charge the battery through the inverter; in the evening or during an outage, the stored energy powers your home. Because the battery and inverter are separate, you can size each part to your needs and upgrade them independently over time, which makes the K-MOVE a flexible building block for a home energy storage setup.
